Brand Name : | SRYLED |
Model Number : | SRY - IF - P4 |
Certification : | CE, LVD, RoHS |
Price : | US$ 1,050 - 1,180 / Square Meter |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal |
Supply Ability : | 1,000 Square Meter per Month |
Delivery Time : | 10 - 12 work days |
1/16 Scan 256mm X 128mm Indoor Rental Led Display 4mm SMD2121
Decription:
2. Super slim cabinet
Cabinet thinkness: 70mm
3. Wide viewing angle
Viewing angle: H: 120º, V: 120º
4. Energy saving and low power consumption
Ave. power consumption: 184W/sqm
Max. power consumption: 550W/sqm
Specification:
Pixel Pitch | 4mm |
Pixel Density | 62,500dots/sqm |
Tube Chip Color | Full Color |
Color Configuration | 1R1G1B 3in1 |
LED Encapsulation | SMD2121 |
Module Size | 256mm x 128mm |
Module Resolution | 64dots x 32dots |
Cabinet Size | 512mm x 512mm |
Cabinet Resolution | 128dots x 128dots |
Drive Duty | 1/16 Constant Current |
Brightness | ≥1,500nits |
Viewing Distance | 4m - 40m |
Viewing Angle | H: 120°, V:120° |
Refresh Rate | 2,000HZ |
Frame Rate | 120frame/sec |
Grey Grade | 256levels of Each Color |
Color Grade | 16.7M |
Power Input | 5V - 40A, AC110V/ 220V/ 50HZ |
Max Power Consumption | 550W/sqm |
Ave. Power Consumption | 184W/sqm |
Storage Temperature | -40℃ - +80℃ |
Working Temperature | -20℃ - +60℃ |
Blind Spot Rate | <1/10,000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Cabinet Weight | 7kg |
Operating Humidity | 10% - 95% |
Control System | Synchronous, Asynchronous |
Operating System | Win 98, Win2000, XP, 07.etc |
Input Source | All Format (AVI, MPEG,VOB, RM, etc) |
Certificate | CE, LVD, RoHS |
Application:
New products conference, big music concert, movie theater, wedding
ceremony, brithday ceremony, meeting room, stage shows, exhibitions
and etc.

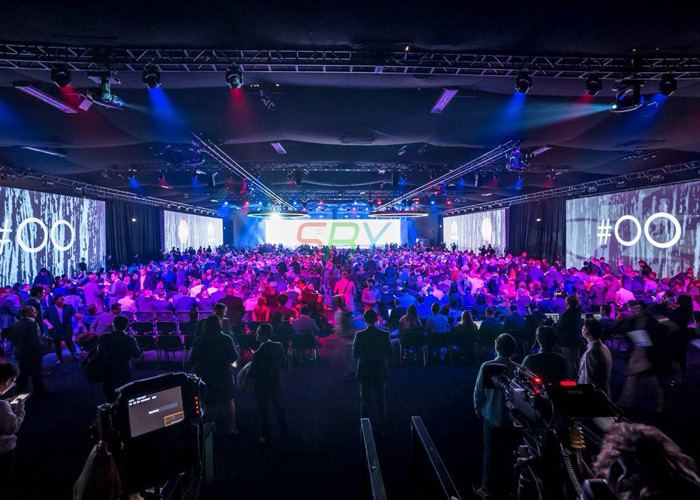

Application Pictures:
Competitive Advantages:
1. High brightness, high definition, wider viewing angle.
2. energy-saving design and lower power consumption.
3. High quality, competitive price and best post-sale service.
4. CE, LVD, RoHS certified, 2 full years warranty, long lifespan.
![]() |
