    200W 40A LED Display Accessories , Meanwell LED Display Power Supply

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : CL-200W
    Certification : CE, RoHS,CCC
    Price : 9-12USD/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100000pcs/month
    Delivery Time : 3 days after receiving payment
    • Product Details
    • Company Profile

    200W 40A LED Display Accessories , Meanwell LED Display Power Supply

    200W 40A LED Display Accessories , Meanwell LED Display Power Supply
    Feature

    1, 200W Single Output Certified Power SupplyHigh reliability


    2, Built-in EMI filter


    3, Low output ripple&noise


    4, Protections:Over load/Short circuit


    5, Approvals:CE CCC


    6, 2 years warranty


    Specification


    1, Case:808 Size ------------------199×110×50mm


    2, AC input voltage range -------------------------- 176-264VAC


    3, Input frequency --------------------------------- 47-63Hz


    4, AC inrush current -------------------------------- Cold start,60A/230VAC


    5, DC adjustment range ----------------------------- ±10% rated output voltage


    6, Line regulation(full load)------------------------ ≤0.5%


    7, Output over load protection ------- 110%-150% shut off, AC recycle to re-start


    8, Rise,hold up time -------------------- 50mS,20mS at full load(typical)


    9, Withstand voltage ------- I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min


    10, Working temperature----- -10~+40℃@100%,+60℃@60% load


    11, Storage temperature----- -20℃~+85℃,20%~95%RH(non condensing)


    12, Safety standards------Design refer to GB4943,UL60950-1,EN60950-1


    13, EMC standards------- Design refer to GB9254,EN55022 class A


    14, Cooling method---------------------Free air cooling convection


    15, Product modelDC output Load regular.R&NEfficiencyA-200-55V,40A2%100mV78%A-200-1212V,16.7A1%120mV80%A-200-2424V,8.3A1%200mV83%

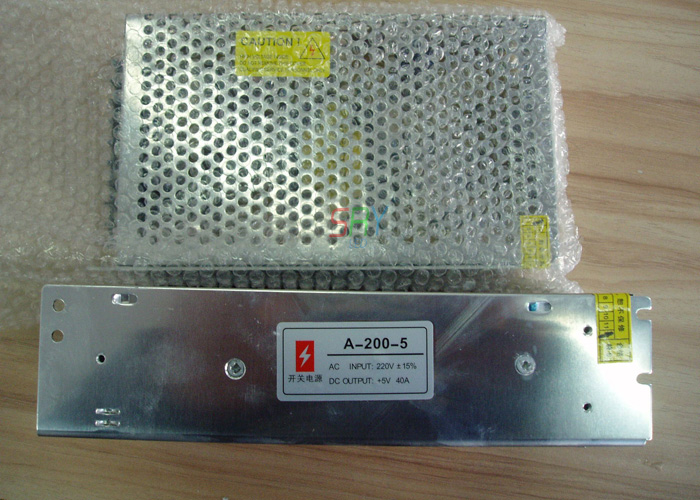

    Product Images
