1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display

    Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers

    Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers
    • Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers
    • Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers
    • Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers
    • Buy cheap 1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display from wholesalers

    1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY-IF-P6
    Certification : CE/RoHS
    Price : 600-950USD/sqm
    Payment Terms : T/T, Western Union, PayPal
    Supply Ability : 3000sqm per month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display

    1R1G1B Movable Stage Background LED Screen SMD3528 Hanging LED Display

    Description

    1. Quiet fan design, excellent heat dissipation, noiseless.
    2. Super thin power supply inside.

    3, High definition makes video and images very clear.

    4. Fast locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
    5. Cabinet weight is only 8 KG, it is very light to carry and decrease the transportation cost and the intensity of labor.


    Features


    1. Ultra thin and light cabinet, fast locks, power plug and hanging design make it easy to assemble and disassemble.


    2. High refresh rate, HD video and vivid images.


    3. Tidy and beautiful cabinet desgin.


    4. Good heat dissipation, noiseless.


    5. At least 48hours aging test before delivery.


    Company Equipments


    Wave Soldering Conveyor, PC Console, Wave Soldering Machine, Automatic Glue- pouring Machine,

    Solder Paste Printing Machine, Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester, Medium speed Automatic SMT Machine,

    Super Mute Terminal Machine, Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI)

    Equipment.


    Competitive Advantages


    1. CE & RoHS certificate

    2. 24 months warranty, life long free tech-support

    3. Wide viewing angle, smooth surface

    4. Excellent contrast ratio, high resolution

    5. Perfect uniformity, no mosaic

    6. Light weight, easy installation


    Specification


    Pixel Pitch

    6mm

    Pixel Density

    27777dots/sqm

    Color Configuration

    1R1G1B

    LED Package

    SMD3528

    Module Size

    192mm x 192mm

    Module Resolution

    32dots x 32dots

    Drive Mode

    1/16 Scan

    Standard Cabinet Size

    576mm x 576mm

    Cabinet Weight

    8KG

    Brightness

    ≥1100 cd/sqm

    Viewing Distance

    6m-60m

    Viewing Angle

    H: 140°; V:120°

    Refresh Rate

    2000HZ, adjustable by software

    Frame Rate

    120frame/s

    Grey Scale

    16.7M colors(Synchronized)

    Color Temperature

    R.G.B brightness 256 level adjustable

    Power Input

    AC110V/ 220V ±10%, 50HZ

    Max Power Consumption

    700W/sqm

    Ave. Power Consumption

    250W/sqm

    Storage Temperature

    -30℃~+70℃

    Working Temperature

    -20℃~+50℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Waterproof Level

    IP43

    Operating Humidity

    10%~90% RH

    Control Method

    Synchronous, Asynchronous, 3G,WIFI,USB

    Control PC

    With DVI Graphic card

    Operating System

    Win 98, Win2000, XP, Win7, Win8

    Video Signal Mode

    RF, S-Video, RGB, RGBHV, YUV, YC etc

    Certificate

    CE, RoHS

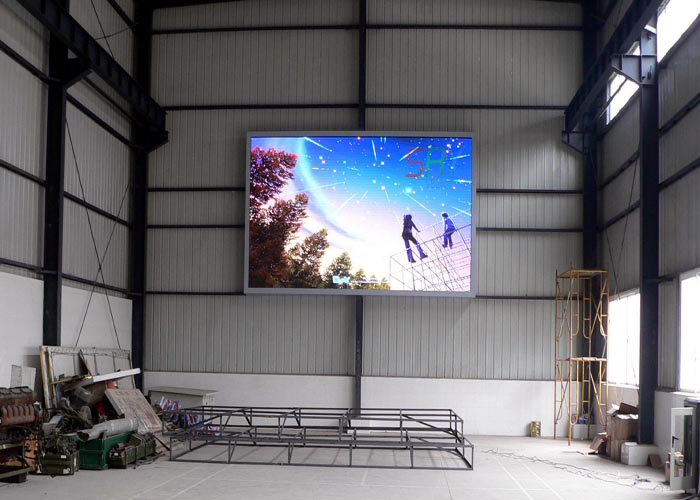

    Product Images
