Outdoor Rental Led Display Available Pixel Pitch, P4.81, P5, P6,
P6.67, P8, P10
Feature
1, LED rental display cabinet ultra-light, ultra-thin , simple
structure, high compatibility , fast and quick installation,
removal, saving time and labor costs.
2, LED rental display cabinets , easy and convenient to install,
low cost of installation; low -Consumption cabinet , save operating
costs and reduce labor costs.
3, LED rental display cabinet is designed with Die-cast aluminum ,
which is high strength , high toughness, high precision, easily
deformed and highly wind resistance.
4, One cabinet can be installed in a few seconds with high
precision, large area arbitrarily assembled .
Description
1. High brightness, over 6500 nits, can work well in day time even
under direct sunshine.
2. Die-casting aluminium cabinet, tolerance is less than 0.2mm ,
surface is very flat.
3. IP65 standard,dustproof and waterproof . No problem to work for
long time outside.
4. High refresh rate: Over 2000Hz/s, no scan lines when taking
video and pictures.
5. Paked by flight cases , very easy for transportation.
6. It can be hung on truss.
Competitive Advantage
1. We do packaging LED chip in our own factory
2. 24/7 hours online Remote Support
3. Solution and PCB design
4. Free factory training or engineer support in the spot
5. Onsite installation instruction and regular inspection
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine,
Solder Paste Printing Machine,Reflow Soldering Machine, Automatic
Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester, Medium speed
Automatic SMT Machine,
Super Mute Terminal Machine, Automatic Wire Stripping Machine,
Automatic Optical Inspection (AOI)
Equipement.
Applications
Commercial advertising, night club, entertainment events, business
establishments, stock exchange centers, schools,
telecommunications, stadiums, shopping malls, railways, airports,
stages, activities etc.
Specification
Pixel Pitch | 6mm |
Pixel Density | 27777dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD3535 |
Module Size | 192mm x 192mm |
Module Resolution | 32dots x 32dots |
Drive Mode | 1/8 Scan, Constant Current |
Brightness | >6500cd/sqm |
Viewing Distance | 6m-60m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 2000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 1200W/sqm |
Ave. Power Consumption | 500W/sqm |
Storage Temperature | -40℃~+85℃ |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control System | Synchronous, 3G, WIFI, USB |
Control PC | With DVI Graphic card |
PC Display Resolution | 1280x1024 |
Operating System | Win 98, Win2000, XP, Win7 ,Win8.etc |
Video Signal Mode | RF,S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |

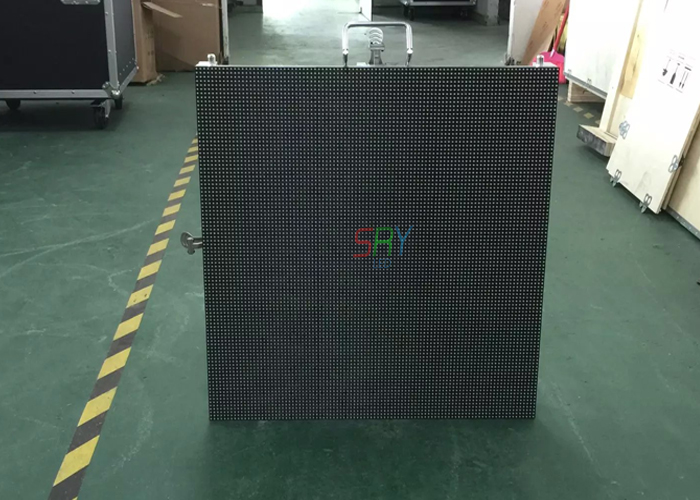

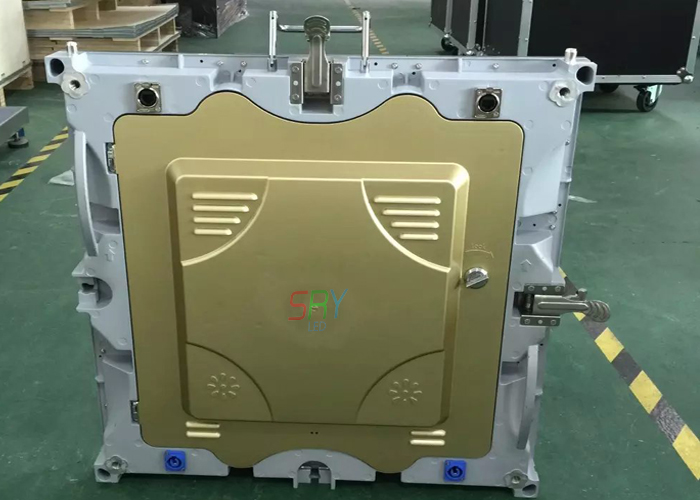

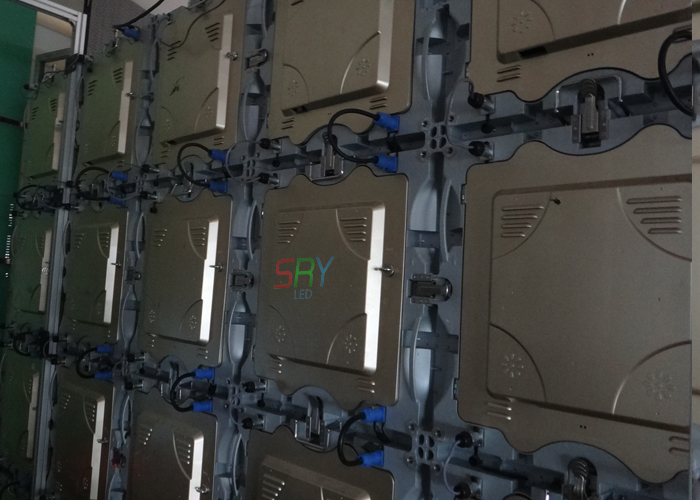

Product Images
