    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY - OF - P12
    Certification : CE, LVD, RoHS
    Price : US$ 680 ~ 750 / Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM

    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM


    Decription:

    Outdoor P12 column LED billboard. It has the same LED encapsulation to P10. With DIP346 192mm x 192mm LED module, brightness is higher than 7,500nits. If the screen size is big enough, it is still a good choice. With column supported, it is easy to attract people's attention.
    Features:
    1. High brightness

    2. Easy to maintain


    3. Good color uniformity


    4. Low power consumption


    5. Energy saving design


    6. Light cabinet design


    7. 100,000hrs MTBF


    Specificition:

    Pixel Pitch

    12mm

    Pixel Density

    6,944dots/sqm

    Color Configuration

    1R1G1B

    LED Encapsulation

    DIP346

    Module Size

    192mm x 192mm

    Module Resolution

    16dots x 16dots

    Drive Duty

    1/4scan Constant Current

    Brightness

    >7,500nits

    Viewing Distance

    12m - 120m

    Viewing Angle

    H: 120°; V: 70°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V-20A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    520W/sqm

    Ave. Power Consumption

    173W/sqm

    Storage Temperature

    -40℃ ~ +80℃

    Working Temperature

    -20℃ ~ +60℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Waterproof

    IP65

    Operating Humidity

    10%~95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:


    Outdoor double column LED billboards are widely use in road side, express way, gas station, playground and etc.

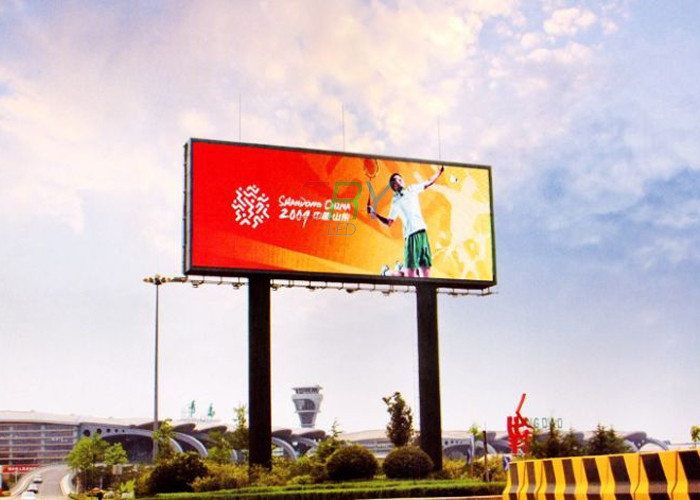

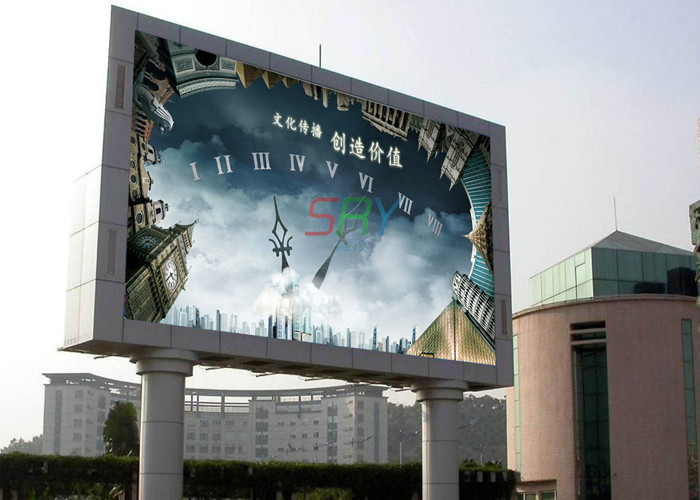

    Application Pictures:


    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM

    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM

    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM

    Double Column Outdoor LED Billboard Waterproof LED Screen Pixel Pitch 12MM


    Competitive Advantages:


    1. High brightness: >7,500nits


    2. Wide viewing angle: H: 120°; V: 70°


    3. Best viewing distance: 12m ~ 120m


    4. Waterproof: Front: IP65, Rear: IP54
