8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers

    Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers
    • Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers
    • Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers
    • Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers
    • Buy cheap 8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen from wholesalers

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY - OF - P6
    Certification : CE, LVD, RoHS
    Price : US$ 1,450 ~ 1,550 / Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10-12 work days
    • Product Details
    • Company Profile

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen


    Decription:

    Outdoor P6 LED billboard. It has the smaller LED encapsulation. With DIP246 192mm x 192mm LED module, brightness is higher than 8,000nits. For small size billboard, it is a good choice for its high definition.
    Features:
    1. High brightness

    2. Easy to maintain


    3. Good color uniformity


    4. Energy saving design


    5. Low power consumption


    6. Light cabinet design


    7. 2 full years warranty


    Specificition:

    Pixel Pitch

    6mm

    Pixel Density

    27,777dots/sqm

    Color Configuration

    1R1G1B

    LED Encapsulation

    DIP346

    Module Size

    192mm x 192mm

    Module Resolution

    32dots x 32dots

    Drive Duty

    1/8scan Constant Current

    Brightness

    >8,000nits

    Viewing Distance

    6m - 60m

    Viewing Angle

    H: 120°; V: 70°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V-20A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    1040W/sqm

    Ave. Power Consumption

    340W/sqm

    Storage Temperature

    -40℃ ~ +80℃

    Working Temperature

    -20℃ ~ +60℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Waterproof

    IP65

    Operating Humidity

    10%~95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:


    Outdoor double column LED billboards are widely use in road side, express way, gas station, playground and etc.

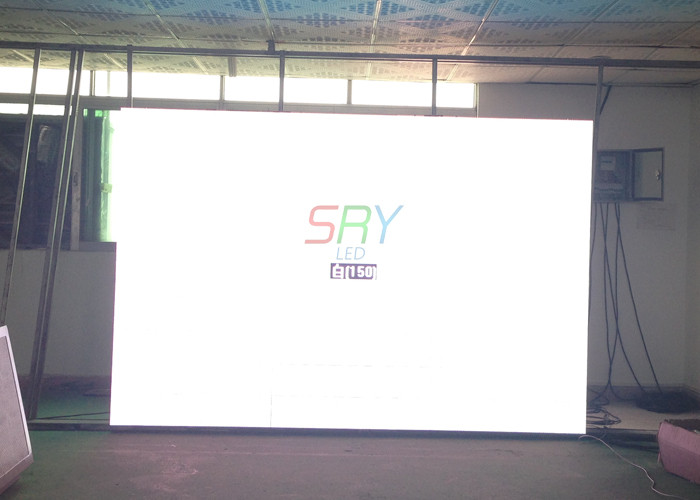

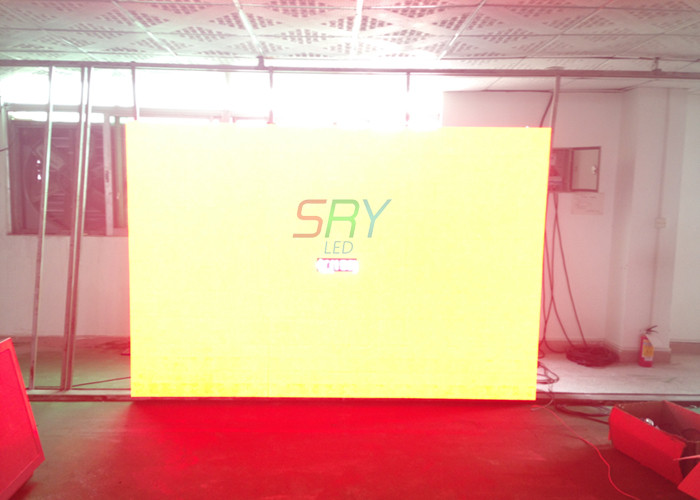

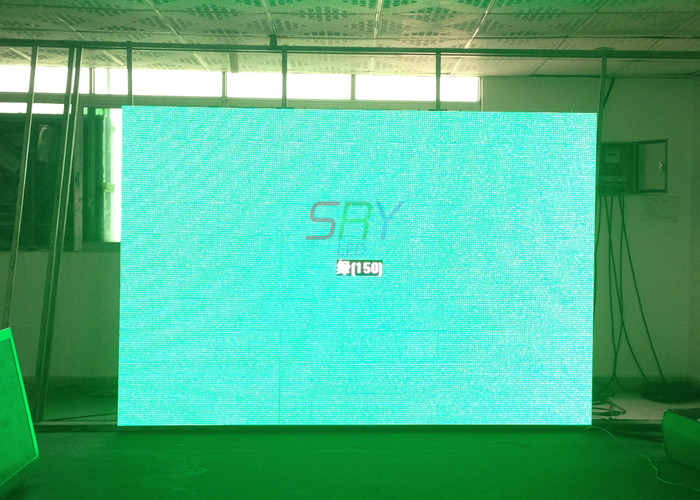

    Application Pictures:


    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen

    8000nits Outdoor Digital Billboard 192mm x 192mm DIP246 Full Color LED Screen


    Competitive Advantages:


    1. High brightness: >7,500nits


    2. Wide viewing angle: H: 120°; V: 70°


    3. Best viewing distance: 12m ~ 120m


    4. Waterproof: Front: IP65, Rear: IP54
