    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY-OF-P16
    Certification : CE, LVD, RoHS
    Price : US$ 55 ~ 60 / PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 3,000 PCS per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current


    Decription:

    Outdoor P10 Front Maintenance Static Full Color 320mm x 320mm Waterproof LED Module. The cabinet with this kind modules, its thickness can be designed thinner than traditional cabinets. It saves raw materials. During working if the modules malfunctioning, manitenance be comes more convenient. It saves time in maintaining. Because of the modules are easy to install and uninstall.
    Features:
    1. High brightness: >8,000cd/sqm

    2. Best viewing distance: 16m ~ 160m


    3. Best viewing angle: H: 120°; V: 70°


    4. Max power consumption: 750W/sqm


    Specificition:

    Pixel Pitch

    16mm

    Pixel Density

    3,906dots/sqm

    Color Configuration

    1R1G1B

    LED Encapsulation

    DIP346

    Module Size

    320mm x 320mm

    Module Resolution

    20dots x 20dots

    Drive Duty

    Static Constant Current

    Brightness

    >8,000nits

    Viewing Distance

    16m - 160m

    Viewing Angle

    H: 120°; V: 70°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V-20A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    1,180W/sqm

    Ave. Power Consumption

    390W/sqm

    Storage Temperature

    -40℃~+80℃

    Working Temperature

    -20℃~+60℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Waterproof

    IP65

    Operating Humidity

    10%~95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:


    Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside wall mounted advertising use.

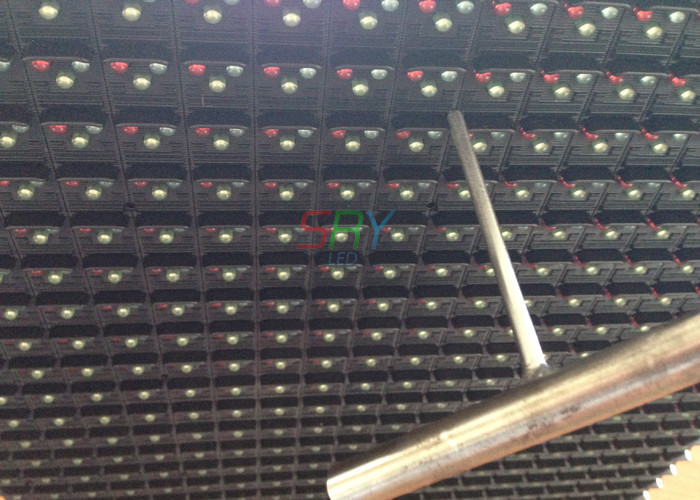

    Module Pictures:


    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

    P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current


    Competitive Advantages:


    1. Front maintenance


    2. Easy to install and uninstall


    3. Two full yearrs warranty


    4. ​CE, LVD, RoHS certified
