    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY - IF -P3
    Certification : CE, LVD, RoHS
    Price : US$ 16 ~ 17 / PCS
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 3,000 PCS per Month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits


    Decription:

    HD P3 Indoor Black LED SMD2121 Full Color 1/16scan 192mm x 96mm LED Module. It uses the newest technology to achieve customer's HD requests.

    Features:
    1. High refresh frequency
    Using the latest technology to make the normal constant current(pure-drive) LED display has super high refresh frequency
    2. Cabinet splice
    Mobilize the modules ensure the cabinet seamless
    3. High protection grade
    Painting conformal coating to achieve moisture-proof, anti-corrosion, anti-mildew and anti-
    electromagnetic capabilities

    Specificition:

    Pixel Pitch

    3mm

    Pixel Density

    111,111dots/sqm

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD2121

    Module Size

    192mm x 96mm

    Module Resolution

    64dots x 32dots

    Drive Duty

    1/16 Constant Current

    Brightness

    >1,500nits

    Viewing Distance

    3m - 30m

    Viewing Angle

    H: 120°; V: 120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V-20A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    360W/sqm

    Ave. Power Consumption

    180W/sqm

    Storage Temperature

    -40℃~+80℃

    Working Temperature

    -20℃~+60℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Operating Humidity

    10%~95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:


    Shopping plaza, museum, cinema, exhibition, hotel, meeting room, church and etc indoor LED display advertising use.

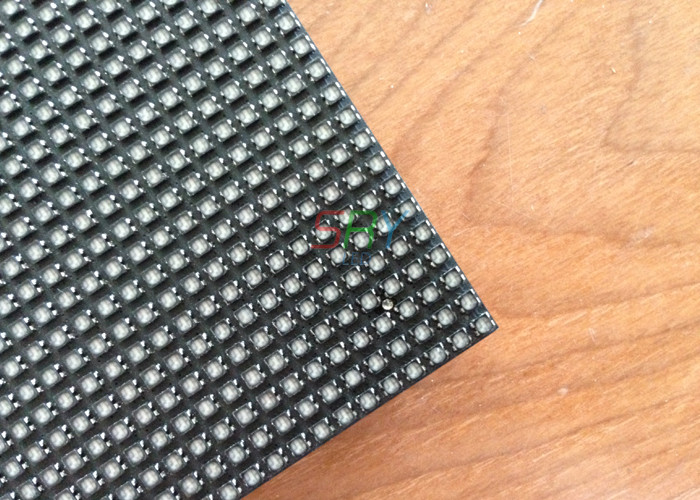

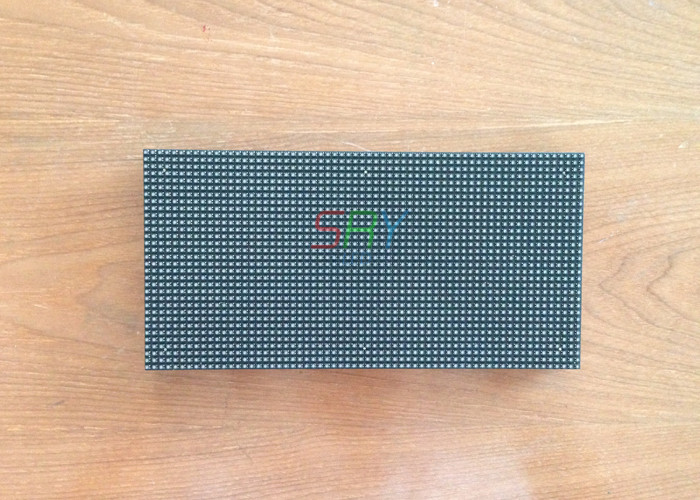

    Module Pictures:


    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

    3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits


    Competitive Advantages:


    1. High definition choice

    2. High color fidelity


    3. Well uniformity


    4. Black LED lamps
