    P 5mm Full Color Taxi LED Display Wireless 3G System 960mm x 320mm

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY - OF - P5
    Certification : CE, LVD, RoHS
    Price : 900-1100USD/unit
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 1,000 units/month
    Delivery Time : 10 - 15 Working Days
    • Product Details
    • Company Profile

    P 5mm Full Color Taxi LED Display Wireless 3G System 960mm x 320mm


    Outdoor Advertising P5 Full Color Taxi Top Roof LED Sign Wireless 3G System 960mm x 320mm


    Decription:


    1, Epistar, Silan, Cree, Nichia, etc LED chip available.
    2, IP65 waterproof design, total outdoor use application.

    3, Led taxi roof sign , double-sided, could reach more people as possible.


    4, Easy for installation, we could provide a special structure for isntallation if you like.


    5, With High brightness, make the display content visible even under sunshine during daytime.


    6, Large viewing angle , full color, high color uniformity and clear image, bring you a vivid audio visual effect.


    Features:

    This is P5 type,960x320mm screen dimension each side,192x64pixels;


    It can be customer-designed,with LOGO at the two sides


    It is controlled by 3G,convenient to operate.

    Application:


    Taxi roof, car roof, bus rear side, left side and right side.


    Specificition:


    Display specification
    1Pixel pitch5mm
    2Resolution40,000dots/m2
    3Display size(each side)W0.96xH0.32=0.3072m2
    4Screen resolution(each side)W192xH64=12.288
    5Total module quantity(each side)W6xH2=12pcs
    6Total cabinet quantity1pc
    7Cabinet size(including frame)W1012xH408xD160mm
    8Power consumption(Max)650W
    9Power consumption(ave.)435W
    10Maximum Current54.5Amp
    LED module specification
    11LED composition1R1G1B
    12LED typeSMD3528
    13Module resolutionW32xH32
    14Module sizeW160xH160mm
    15Driving method1/8 scan constant current
    Cabinet Specification
    16Cabinet materialAluminum cabinet with frame
    17Cabinet colorsilver
    18Cabinet weightabout 23kg
    19Flatnessless than 1mm juncture
    Optical Parameters
    20Brightness3,000nits/m2
    21Viewing angleHorizontal 140°,Vertical 70°
    22Minimum viewing distance5m
    Power supply
    23Power supplyDC9-36V
    24Output voltageDC5V
    Control System
    25Control cardSheenled
    26Memory4G
    27Control method3G
    28Refresh rate480Hz
    29Refresh frame frequency60-85Hz
    Formats Supported
    30VideoAVI,WMV,MPG,MOV,DAT,VOB,MP4,FLV
    31AnimationGIF,SWF
    32PictureJPG,BMP,WMF
    Reliablity
    33Protection gradesIP65
    34Work temperature-20~+60℃
    35Humidity(RH)10~90%
    36LED life spanmore than 100,000 hours
    37MTBF5000hours
    38Out of control dot rateless than 1/10,000

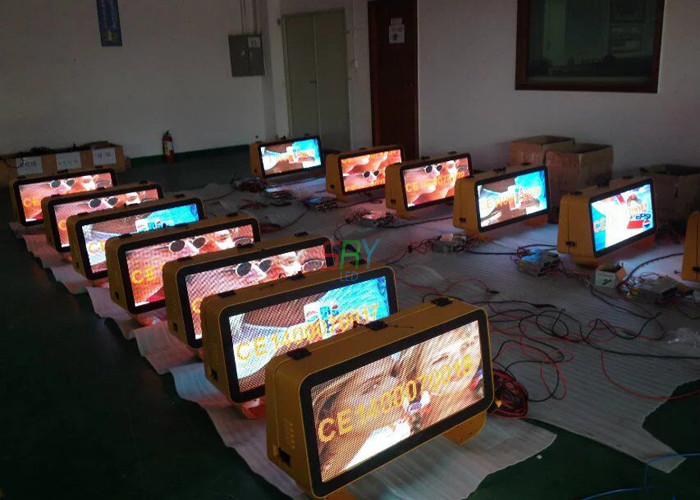

    Product Pictures:


    P 5mm Full Color Taxi LED Display Wireless 3G System 960mm x 320mm

    P 5mm Full Color Taxi LED Display Wireless 3G System 960mm x 320mmP 5mm Full Color Taxi LED Display Wireless 3G System 960mm x 320mm
