    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY - OFS - P10
    Certification : CE, LVD, RoHS
    Price : US$ 560 - 720 / Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
    Supply Ability : 3,000 Square Meters per Month
    Delivery Time : 10 - 12 work days
    • Product Details
    • Company Profile

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance


    Decription:


    1. Easy maintenance, front and rear maintenance are available


    2. Widely application area, such as main screen, side screen, floor screen curved screen


    3. Floor screen can bear 1 ton of weight and IP 65 protection level


    4. Energy saving and environmental friendly


    5. Capability to control the gap between cabinets


    Competitive Advantages:

    1. Low power consumption


    2. Seamless splice design

    3. Super slim cabinet design


    4. Super light cabinet design

    Features:

    1. Light weight and slim design, 45kg/cabinet, cabinet size is 960mm x 960mm


    2. Quick and easy, 10 seconds for assembling 2 cabinets without any tools


    3. Die casting aluminum cabinet design, saves 40% steel structure


    4. Hollow design, wind resistant and great heat dissipation


    5. Outdoor and indoor cabinets and modules are compatible with each other

    Specification:


    Pixel Pitch

    10mm

    Pixel Density

    10,000dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B

    LED Encapsulation

    DIP346

    Module Size

    160mm x 160mm

    Module Resolution

    16dots x 16dots

    Cabinet Size

    960mm x 960mm

    Cabinet Resolution

    96dots x 96dots

    Drive Duty

    1/4 Constant Current

    Brightness

    >7,500nits

    Viewing Distance

    10m -100m

    Viewing Angle

    H: 120°, V:70°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    AC110V/ 220V/ 50HZ

    Max Power Consumption

    750W/sqm

    Ave. Power Consumption

    250W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    WaterproofIP65

    Cabinet Weight

    45kg

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Vehicle, truck, trailer, pickup car and etc mounted use for advertising

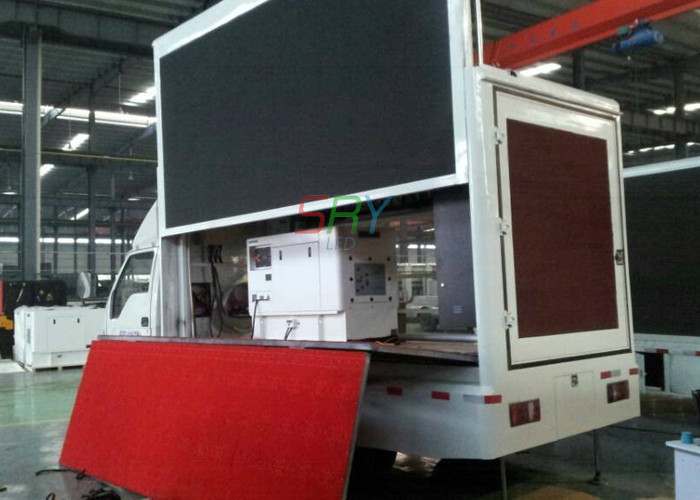

    Application Pictures:

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance

    IP65 PH10mm Advertising Truck Mounted LED Screen Movable rear maintenance
