IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

    Buy cheap IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 from wholesalers

    Buy cheap IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 from wholesalers
    • Buy cheap IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 from wholesalers
    • Buy cheap IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 from wholesalers
    • Buy cheap IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5 from wholesalers

    IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - OFS - P5
    Certification : CE, LVD, RoHS
    Price : US$ 1050 - 1,150 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5


    IP65 6500nits HD led video display panels / 1R1G1B outdoor led display board P5

    Decription:


    IP65 6500nits HD 1R1G1B Outdoor LED Full Color LED Display P5, High Brightness LED Display Screen. Using outdoor high brightness SMD2727 LED lamp to makes sure 6,500nits brightness.


    Features:
    1. Super light and super slim design
    Weight: 40kg/cabinet
    Thickness: 100mm
    2. Seamless splicing design
    Splice: <0.3mm

    3. Energy saving design

    Max. power consumption: 1400W/sqm

    Ave. power consumption: 435W/sqm

    4. Great heat disspation design

    Specification:


    Pixel Pitch

    5mm

    Pixel Density

    40,000dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD2727

    Module Size

    320mm x 160mm

    Module Resolution

    64dots x 32dots

    Cabinet Size

    960mm x 960mm

    Cabinet Resolution

    192dots x 192dots

    Drive Duty

    1/8 Constant Current

    Brightness

    >6,500nits

    Viewing Distance

    5m - 50m

    Viewing Angle

    H: 120°, V:120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V - 40A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    1,400W/sqm

    Ave. Power Consumption

    435W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    WaterproofIP65

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Cabinet Weight

    40kg

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Widely using for supermarket, shopping plaza, stadium, hotel and train station and etc.

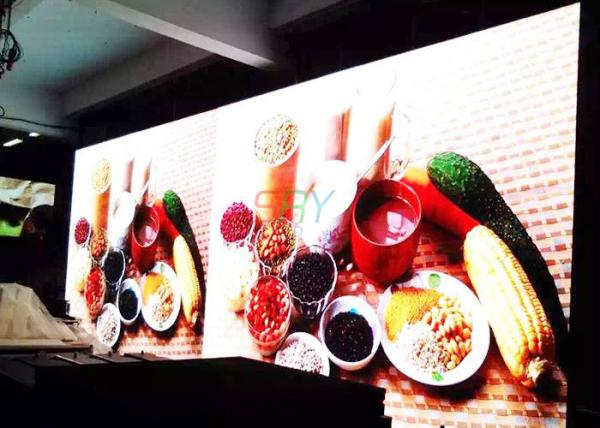

    Pictures:



    Competitive Advantages:

    1. F
    ast installation and easy to install.


    2. 24hours per 7 days, 2 full years warranty.


    3. Vivid and brilliant color, sharp and smooth images.
