    Pulled Aluminum 3mm LED Digital Signage / Full Color LED Display Cabinet

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - IFS - P3
    Certification : CE, LVD, RoHS
    Price : US$ 1,000 - 1,250 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    Pulled Aluminum 3mm LED Digital Signage / Full Color LED Display Cabinet


    Pulled Aluminum 3mm LED Digital Signage / Full Color LED Display Cabinet


    Decription:


    Energy - saving Designed Pulled Aluminum Cabinet, Indoor Stage 3mm Full Color LED Display.


    Features:
    1. Cost-effective solution and very popular.
    2. Radian lock scale design it can connect with 15°-15°any kind of radian type.
    3. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.
    4. Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.
    5. Pulled Aluminal frame, Lightweight, ultra-thin body of the screen design, effectively
    saving freight costs.
    6. Popular apply to main screen, sides screen, sky screen, dancing floor screen combination use.

    Specification:


    Pixel Pitch3mm
    Pixel Density111,111dots/sqm
    Tube Chip ColorFull Color
    Color Configuration1R1G1B 3in1
    LED EncapsulationSMD2121
    Module Size192mm x 192mm
    Cabinet Size576mm x 576mm
    Cabinet Resolution192dots x 192dots
    Cabinet Weight8kg
    Drive Duty1/16 Constant Current
    Brightness>1,500nits
    Viewing Distance3m - 30m
    Viewing AngleH: 120°, V: 120°
    Refresh Rate2,000HZ
    Frame Rate120frame/sec
    Grey Grade256levels of Each Color
    Color Grade16.7M
    Power InputAC110V/ 220V ±10%, / 50HZ
    Max Power Consumption360W/sqm
    Ave. Power Consumption180W/sqm
    Storage Temperature-40℃ - +80℃
    Working Temperature-20℃ - +60℃
    Blind Spot Rate<1/10,000
    MTBF>10,000 Hours
    Life Span>100,000 Hours
    Operating Humidity10% - 95%
    Control SystemSynchronous, Asynchronous
    Operating SystemWin 98, Win2000, XP, 07.etc
    Input SourceAll Format (AVI, MPEG,VOB, RM, etc)
    CertificateCE, LVD, RoHS

    Application:

    Widely using for advertising media, sports stadiums, airport station integrated information dissemination, business establishments, public area.

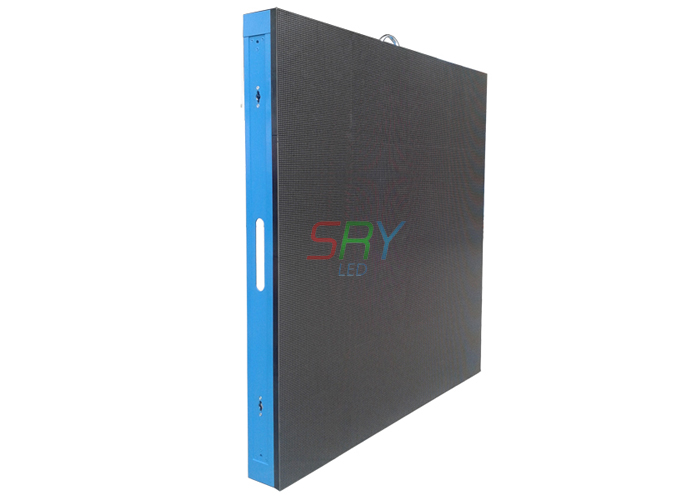

    Pictures:



    Competitive Advantages:


    1. Light weight and slim:

    The thickness of each cabinet less than 80mm,only 8KG/cabinet.


    2. Mixed-use available:

    Two different cabinet sizes:576mm x 576mm,they are compatible vertically with each other,which can mixed-use for one big screen.


    3. Time-saving:

    Each cabinet measures 576mm x 576mm ensuring assembly and disassembly twice faster.


    4. Smart and Simple:

    No internal connection cables can deliver a much more stable performance.


    5. Anti-damage design:

    Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.
