P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel

    Buy cheap P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel from wholesalers

    Buy cheap P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel from wholesalers
    • Buy cheap P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel from wholesalers
    • Buy cheap P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel from wholesalers
    • Buy cheap P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel from wholesalers

    P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - OFC - P8
    Certification : CE, LVD, RoHS
    Price : US$ 620 - 650 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

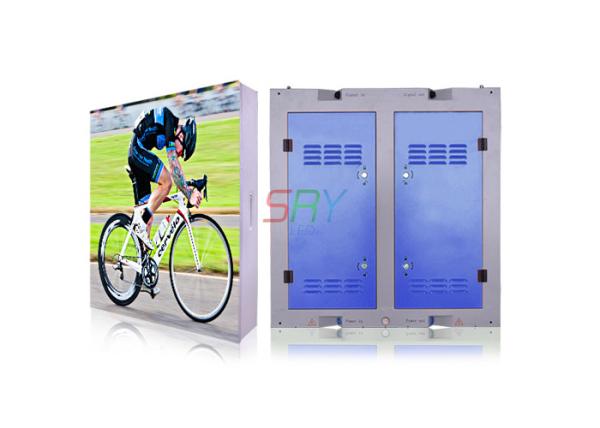

    P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel

    P8 SMD Outdoor LED Display Cabinet Waterproof , Stainless Steel


    Decription:

    P8 SMD Outdoor LED Display Cabinet / 1,024mm x 1,024mm Waterproof Stainless Steel Cabinet. Brightness can be higher than 6,500nits.


    Features:
    1. Max. power consumption
    1,200W/sqm
    2. Ave. power consumption
    400W/sqm

    3. Best viewing distance
    8m - 80m


    4. Best viewing angle
    H: 120°, V: 120°

    Specification:


    Pixel Pitch

    8mm

    Pixel Density

    15,625dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD3535

    Cabinet Size1,024mm x 1,024mm
    Cabinet Resolution128dots x 128dots
    Cabinet Weight60kg

    Drive Duty

    1/4 Constant Current

    Brightness

    >6,500nits

    Viewing Distance

    8m - 80m

    Viewing Angle

    H: 120°, V: 120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    AC220V (110V) ±15%, 47 - 64HZ

    Max Power Consumption

    1,200W/sqm

    Ave. Power Consumption

    400W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    WaterproofIP65

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

    Pictures:



    Competitive Advantages:

    1. Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.


    2. Free guarantee repair (including labor and material); free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.


    3. Responding time: upon receiving user’s notification, we ensure 24-hour after-sales technical support.


    4. Spare parts: necessary spare parts are provided together with products to customers.


    5. Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.


    6. Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.


    7. Site instruction service of installation is available.
