    5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - OFC - P5
    Certification : CE, LVD, RoHS
    Price : US$ 980 - 1,050 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness


    5mm Outdoor Full Color LED Display Cabinet 960mm x 960mm , High Brightness


    Decription:


    Waterproof 5mm Outdoor Full Color 960mm x 960mm LED Display Cabinet, High Brightness. Brightness can be higher than 6,500nits.


    Features:
    1. Stainless steel cabinet design, waterproof IP65
    2. Excellent heat dissipation design and performance.
    3. Cost-effective solution and very popular.
    4. High contrast ratio, high refresh rate makes the screen without any delay or smear phenomenon.

    Specification:


    Pixel Pitch5mm
    Pixel Density40,000dots/sqm
    Tube Chip ColorFull Color
    Color Configuration1R1G1B 3in1
    LED EncapsulationSMD2727
    Cabinet Size960mm x 9600mm
    Cabinet Resolution192dots x 192dots
    Cabinet Weight40kg
    Drive Duty1/8Constant Current
    Brightness>6,500nits
    Viewing Distance5m - 50m
    Viewing AngleH: 120°, V: 120°
    Refresh Rate2,000HZ
    Frame Rate120frame/sec
    Grey Grade256levels of Each Color
    Color Grade16.7M
    Power InputAC220V (110V) ±15%, 47 - 64HZ
    Max Power Consumption1,400W/sqm
    Ave. Power Consumption460W/sqm
    Storage Temperature-40℃ - +80℃
    Working Temperature-20℃ - +60℃
    Blind Spot Rate<1/10,000
    MTBF>10,000 Hours
    Life Span>100,000 Hours
    Operating Humidity10% - 95%
    Control SystemSynchronous, Asynchronous
    Operating SystemWin 98, Win2000, XP, 07.etc
    Input SourceAll Format (AVI, MPEG,VOB, RM, etc)
    CertificateCE, LVD, RoHS

    Application:

    Widely using for music concert, theater, stadium, showroom, stage, fitness room, monitoring room and etc.

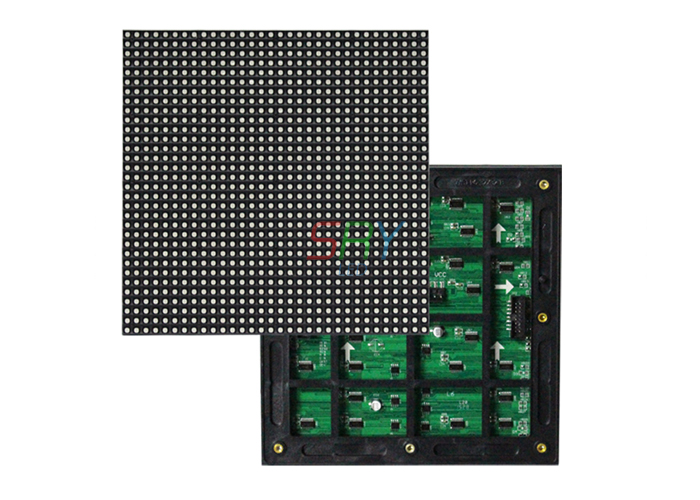

    Pictures:



    Competitive Advantages:

    1. Anti-damage design:

    Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.


    2. Mixed-use available:

    Can be also used for other 160mm x 160mm modules.


    3. Light weight and slim:

    The thickness of each cabinet less than 100mm,only 40kg/cabinet.


    4. Smart and Simple

    No internal connection cables can deliver a much more stable performance.

    Product Tags:

    LED screen Cabinet



    LED Cabinet
