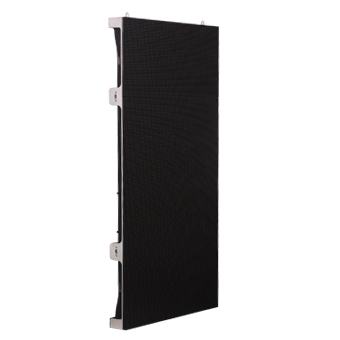

HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan

    Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers

    Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers
    • Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers
    • Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers
    • Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers
    • Buy cheap HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan from wholesalers

    HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - IFC - P3.91
    Certification : CE, LVD, RoHS
    Price : US$1,020 - 1,050 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan


    HD 3.91mm digital LED display 500mm x 500mm Portable Cabinet 1/16 Scan

    Decription:


    Indoor HD 3.91mm Full Color 500mm x 500mm Portable LED Display Cabinet 1/16 Scan. Cabinet size can be designed as 500mm x 1,000mm


    Features:

    1. Anti-damage design:

    Special anti-damage design on cabinit structure can reduce damage on led lamps and modules during insallation.


    2. Mixed-use available:

    Two different cabinet sizes:500*500mm & 500*1000mm,they are compatible vertically with each other,which can mixed-use for one big screen..


    3. Light weight and slim:

    The thickness of each cabinet less than 80mm,only 11.5KG/cabinet.


    4. Time-saving:

    Each cabinet measures 500*1000mm ensuring assembly and disassembly twice faster.


    5. Smart and Simple

    No internal connection cables can deliver a much more stable performance.

    Specification:


    Pixel Pitch

    3.91mm

    Pixel Density

    64,410dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD2121

    Module Size

    250mm x 250mm

    Cabinet Size500mm x 500mm
    Cabinet Resolution128dots x 128dots
    Cabinet Weight7kg

    Drive Duty

    1/16 Constant Current

    Brightness

    >1,800nits

    Viewing Distance

    4m - 40m

    Viewing Angle

    H: 120°, V: 120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    AC110V/ 220V ±10%, / 50HZ

    Max Power Consumption

    400W/sqm

    Ave. Power Consumption

    200W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

    Pictures:



    Competitive Advantages:

    1. Vivid and brilliant color, sharp and smooth images.

    2. Plug and play, without tools to install / uninstall one cabinet in 6s.

    3. One set cabinet structure is compatiable with various pixel pitches module.


    4. Superb performance / price ratio solution for rental market.


    5. 2 full years warranty. 7 days, 24hours on-line service.
