Indoor SMD2121 Pixel 64 x 32 led p3 rgb display module 192mm x 96mm
Description
1) Wide viewing angles. Both the horizontal viewing angle and
vertical viewing angle can reach 140 degrees.
2) Good color and brightness conformity. The LED chip is sorted by
2.5nm, while the chip brightness
difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps
between modules are smaller than 1 mm and screen flatness is less
than 1 mm.
4) Different cabinet styles are available, such as fixed
installation style, rental hanging style, ultrathin style,
front-maintained style and front-serviceable style with magnets.
5) Different control system to meet clients’ requirements.
Synchronous or asynchronous. Different brands, such as LINSN, NOVA,
DBSTAR and COLORLIGHT.
6) Long lifetime. SRY LED display can work for more than eight
years in good conditions with little repair.
7) Very competitive price in the market. We have strict purchasing
control system and company operation management system.
Quick Detail
Pixel Pitch: 3mm
Pixel Density: 111111dots/m2
Module Size: 192*96mm
Module Resolution: 64*32 dot
Driving Way: 1/16 scan
Brightness: 2500cd/m2
Level Vision: 140 degree
Voltage: 5V
Life Span: 100000 hours
Specification
Pixel Pitch | 3mm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
| Module Thickness | 18cm |
Standard Cabinet Size | 576mm x 576mm |
| Drive IC | JXI 5020 |
Brightness | ≥2000 cd/sqm |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Ave. Power Consumption | 300W/sqm |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
Life Span | >100,000 Hours |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Operating System | Win 98, Win2000, XP, Win7, Win8, Win10 |
Warranty of Indoor P3 SMD LED display Module
1.We guarantee all our display, modules, spare parts (Epistar Chip)
for two years.
2.We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory.
3.After warranty , we also can offer you the parts for replacement
at our bottom price.
4.After sales, if you have any problem about our product, you can
inform us by Email, we will reply you at once when we get it and
offer you a good solution to solve the problem.
5.We also could solve problems by remote control!
Delivery Time of Indoor P3 SMD LED display Module
1.Delivery time: We deliver within 5 -7days after receiving the
deposit.
2.Before delivery, we will test the display, and keep it light up
for 48 hours, and check all the parts of the display to confirm it
is ok for delivery.
Installation of led advertising screen
1.We can assist the training and technical support for the customer
in the factory, if the customer request.
2.We could send our engineer to guide the installation for you. But
the relevant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the
LED Display rightly and fast if you need.

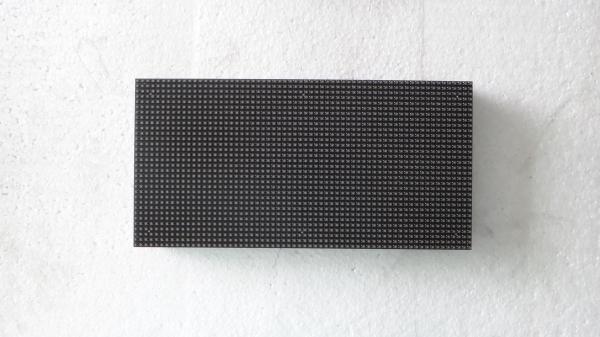

Product Images
