    1024mm x 1024mm LED Advertising Screens P8 SMD 3535 140° View Angle

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRY-OF-P8
    Certification : CE/RoHS
    Price : 500-850USD/sqm
    Payment Terms : T/T, Western Union, PayPal, L/C, D/A, D/P, MoneyGram
    Supply Ability : 3000sqm per month
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    1024mm x 1024mm LED Advertising Screens P8 SMD 3535 140° View Angle


    1024mm x 1024mm LED Advertising Screens P8 SMD 3535 140° View Angle


    Description


    P8 SMD 3535 led display screen is our competitive products with stable quality and afordable prices. Special PCB design makes it energy saving and god heat dissipation.Our cabinet is perfect for waterproof performance, with front IP65 and rear IP54 protection level. P8 outdoor fixed installation standard cabinet size is 1024x1024mm, we also make 768mm x 768mm cabinet to meet more customers requirements.


    Feature


    1. High brightness over 6000nits by using Epistar big LED chip from Taiwan;

    2. High color output: 16 bit color so the video,images shown on the LED screen is very fresh and vivid. It catches the eyes of more audiences,making your advertising very effient.

    3. High refresh rate over 1500HZ/S, when you take photoes or video,no scaning lines.

    4. High waterproof function, our cabinet backdoor has special cover,no need make additional frame to protect waterproof from the rear side.


    5. Control system can be various, Linsn , Nova, Colorlight, Xixun , Huidu etc


    6. Many kinds of cabinet shape, rear maintanance, front access, double side, curved, ball etc


    7. We also provide 512mm x 512mm and 640mm x 640mm die casting aluminum rental led cabinet if customers request.


    Applications


    Commercial advertising, high buildings, entertainment events, stock exchange centers, bus station, schools, telecommunications, stadiums, shopping malls, railways, airports, high way etc.


    Specification


    Pixel Pitch

    8mm

    Pixel Density

    15625dots/sqm

    Color Configuration

    1R1G1B

    Module Resolution

    32dots x 16dots

    Drive Mode

    1/4 Scan Constant Current

    Module Weight

    0.4KG/pcs

    Interface

    Hub75-A

    Brightness

    6000cd/sqm

    Viewing Distance

    8m-60m

    Refresh Rate

    1500HZ

    Frame Rate

    120frame/sec

    Grey Scale

    16.7M colors(Synchronized)

    Color Temperature

    R.G.B brightness 256 level adjustable

    Power Input

    AC110V/ 220V ±10%, 50HZ

    Max Power Consumption

    800W/sqm

    Ave. Power Consumption

    300W/sqm

    Working Temperature

    -20℃~+50℃

    Blind Spot Rate

    <1/10000

    MTBF

    >10,000 Hours

    Waterproof

    IP65

    Operating Humidity

    10%~95%

    PC Display Resolution

    1024x768

    Control PC

    With DVI Graphic card

    Operating System

    Win 98, Win2000, XP, Win7, Win8, Win10

    Video Signal Mode

    RF, S-Video, RGB, RGBHV, YUV, YC etc

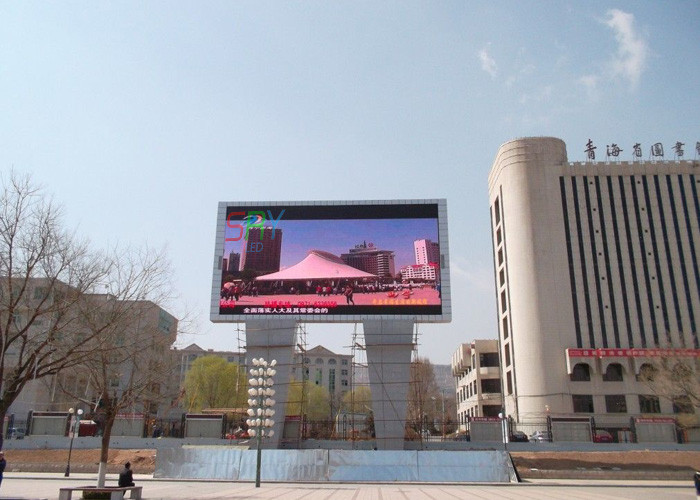

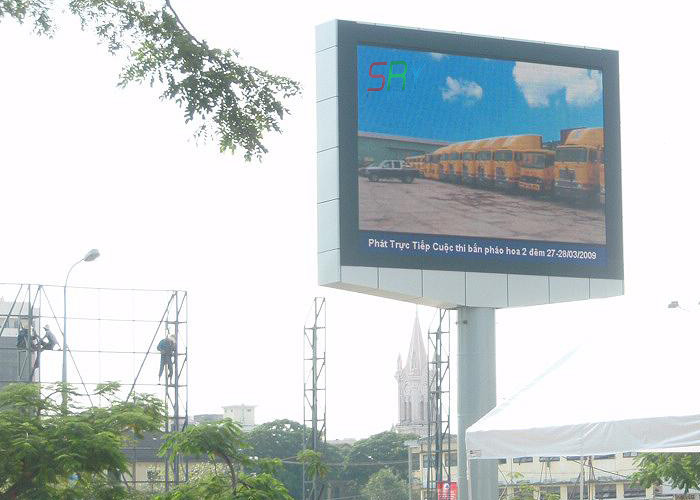

    Product Images:


    1024mm x 1024mm LED Advertising Screens P8 SMD 3535 140° View Angle1024mm x 1024mm LED Advertising Screens P8 SMD 3535 140° View Angle
