Description
1. High Definition & High Performance
15625 dots per sqm, SRY P8 LED advertising display can show vivid
HD images and videos.
2. Light Weight Cabinet
Each Cabinet weight is only 7Kg/pcs with 512mm x 512mm size.
3, Easy and fast Installation
We make Magnesium or alumnium die casting cabinets with fast lock and plug
connectors, we can install cabinet by only one person within 10
seconds.
4, Big viewing angle
SRY P8 led advertising screen viewing angle is 140 degree for
horizontal and vertical.
Advantages
1.Leds.
We select super led tips with high brightness, broad viewing
angle(H140degree, V140degree), all the LEDs are ageing for 72 hours
before assembly.
2.Modules.
We use SMD3535 3in1 pixel configuration to realise high brightness
and energy-saving. Our modules case is PVC, which is more durable and have a stronger ability in bask,
anti-ultraviolet and Difficult to deformation than Plastic ones.

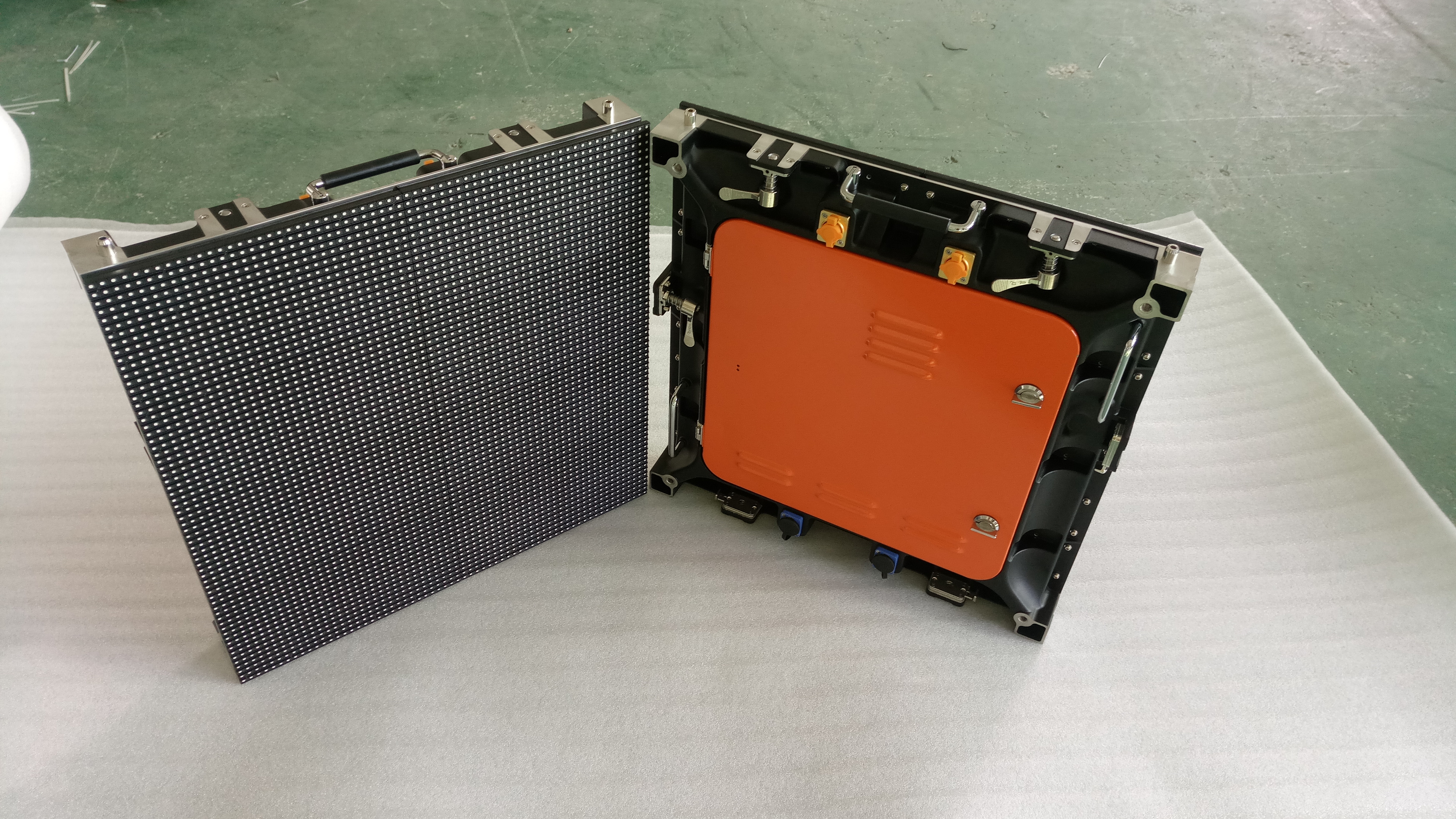

3.Cabinets.
They are used in galvanized steel, or super lightweight Magnesium or
alumnium die casting cabinets, anti-salt, anticorrosive and
waterproof.
4.Screen.
LED drive IC-MBI5024, live color video and vivid image with 256
grey level. for outdoor led displays, all of them are IP 65 and designed to
withstand harsh environmental conditions, such as sun glare, heat,
cold, and humidity. you can see more details in the quotation.
5.Packing .
Anti-shaking wooden case or flight cases, which is lighter than
normal wooden case but more protective to the goods.
6. Spare parts for free.
To prevent accidental, we provide 1% free spare parts according to the size of screen.
7. Warranty for 24 monthes.
8. Technology support .
We have full hardware and software files available for all you
need, we are here to working for you.

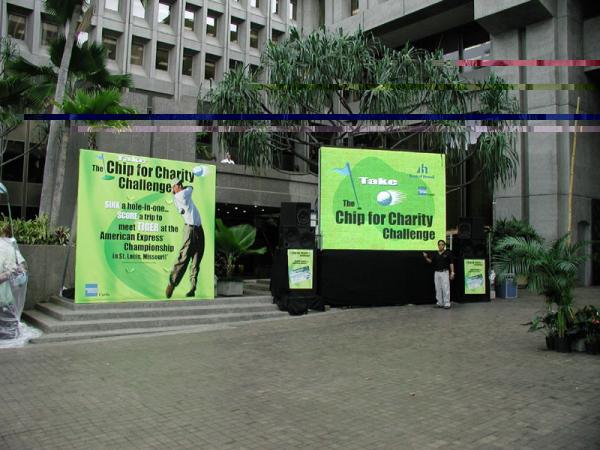

Applications
Commercial advertising, buildings, night club, entertainment
events, business establishments, stock exchange centers, bus
station, schools, telecommunications, stadiums, shopping malls,
railways, airports, high way etc.
Specification
Pixel Pitch | 8mm |
Pixel Density | 15625dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD3535 |
Module Size | 256mm x 128mm |
Module Resolution | 32dots x 16dots |
Drive Mode | 1/4 Scan Constant Current |
Module Weight | 0.4KG/pcs |
Interface | Hub75-A |
Standard Cabinet Size | 512mm x 512mm |
| Cabinet Material | Die casting aluminum |
Cabinet Weight | 7KG |
Brightness | 6000cd/sqm |
Viewing Distance | 8m-60m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 1000HZ |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
PC Display Resolution | 1024x768 |
Control PC | With DVI Graphic card |
Control Method | Synchronous, Asynchronous, 3G,WIFI,USB |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Product Images:
