    5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - IFC - P5
    Certification : CE, LVD, RoHS
    Price : US$ 850 - 950 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum


    5mm Indoor Full Color Led Screen Cabinet 10kg / Pcs Pulled Aluminum

    Decription:


    5mm Indoor Full Color 640mm x 640mm LED Display Cabinet, 10kg/pcs Pulled Aluminum Cabinet. Pulled aluminum cabinet design, makes it easy and fast to install.


    Features:
    1. Super light and super slim design
    Weight: 10kg/cabinet
    Thickness: 70mm
    2. Seamless splicing design
    Splice: <0.3mm

    3. Energy saving design

    Max. power consumption: 800W/sqm

    Ave. power consumption: 270W/sqm

    4. Great heat disspation design

    Specification:


    Pixel Pitch

    5mm

    Pixel Density

    40,000dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD3528

    Module Size

    320mm x 160mm

    Module Resolution

    64dots x 32dots

    Cabinet Size

    640mm x 640mm

    Cabinet Resolution

    128dots x 128dots

    Drive Duty

    1/16 Constant Current

    Brightness

    >1,800nits

    Viewing Distance

    5m - 50m

    Viewing Angle

    H: 120°, V:120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V - 40A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    800W/sqm

    Ave. Power Consumption

    270W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Cabinet Weight

    10kg

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS

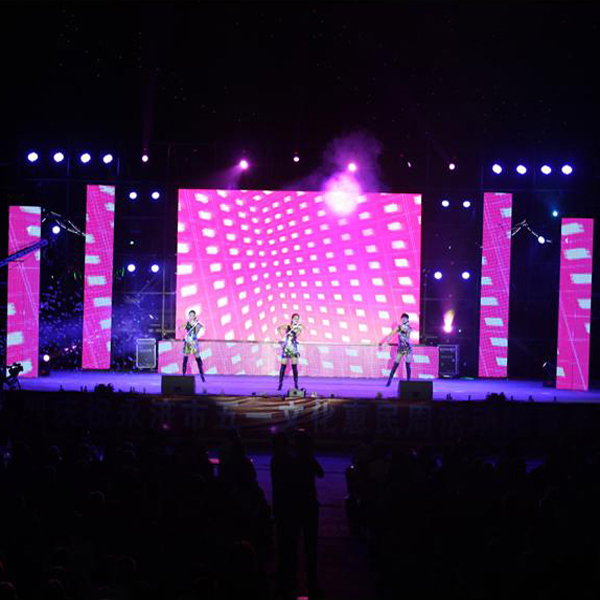

    Application:

    Widely using for music concert, theater, stadium,
    showroom, stage, monitoring room and etc.

    Pictures:



    Competitive Advantages:

    1. Vivid and brilliant color, sharp and smooth images.


    2. 24hours per 7 days, 2 full years warranty.


    3. fast installation and easy to install.
