    High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - IFC - P6
    Certification : CE, LVD, RoHS
    Price : US$ 650 - 750 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528

    High Brightness P6 Super Slim Aluminum Led Cabinet 768mm X 768mm Smd3528


    Decription:

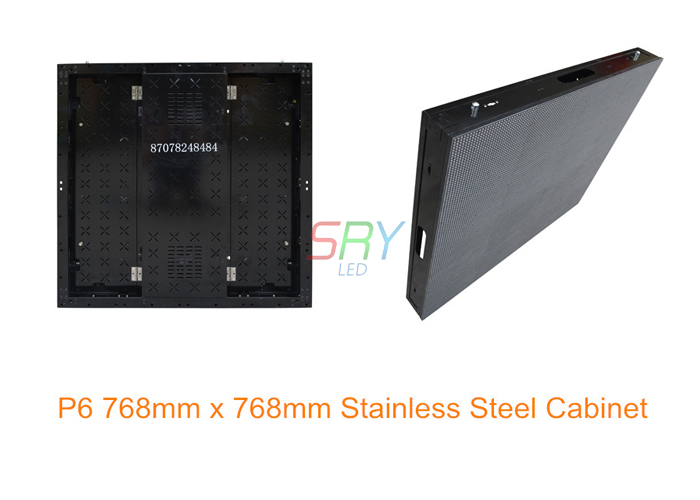

    P6 Indoor Full Color 768mm x 768mm LED Display Cabinet, Black Stainless Steel LED Cabinet​. Super slim cabinet design makes the cabinet more beautiful.


    Features:
    1. High flatness precision: with die-cast aluminum technology, the tolerance of cabinet and module are controlled within 0.1mm, screen flatness and split joint gap are controlled within 0.3mm.

    2. High color consistency and contrast: The module mask is designed with rubber material, no screws needed, high color contract and flatness.

    3. High heat stability: great heat dissipation design, with heat conduction rubber, PCB aluminum casing and dissipation system.
    4. High-end display effect: high refresh, high gray scale, high color contrast, and high quality picture effect.
    5. High structure performance: easy connection of each components, modules and HUB card without flat cables, modules and systems without power cable.

    6. Easy maintenance: each module can be dismantled and installed without taking out power, system card and any other components.

    7. Beautiful appearance: humanized arc handle design, it's a perfect show of technology and art.

    Specification:


    Pixel Pitch

    6mm

    Pixel Density

    27,777dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD3528

    Module Size

    192mm x 192mm

    Module Resolution

    32dots x 32dots

    Cabinet Size

    768mm x 768mm

    Cabinet Resolution

    128dots x 128dots

    Cabinet Weight18kg

    Drive Duty

    1/16 Constant Current

    Brightness

    >1,500nits

    Viewing Distance

    6m - 60m

    Viewing Angle

    H: 120°, V: 120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V - 40A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    420W/sqm

    Ave. Power Consumption

    120W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

    Pictures:



    Competitive Advantages:

    1. Vivid and brilliant color, sharp and smooth images.


    2. Superb performance/price ratio solution for rental market.


    3. 24/7 professional after sales service, and on-site service is available.


    4. Plug & Play, No tools, 10 Seconds for one panel installation / dismantle.


    5. Support different shapes installation: Flat and curved ,create infinite stage styles.


    6. One set cabinet structure is compatible with various pixel pitches, easily have another new screen by
    changing LED module.
