1/4 Scan RGB Outdoor Rental Led Display P10 Led Module Waterproof
Description
DIP outdoor full color LED display screen adopts physical and
virtual pixel technology which makes the picture more clear and
vivid, no flicker and blind dots. The screen is manufactured in a
waterproof and dustproof design so it can work very well in rain
and sunshine. It can be assembled and disassembled very easy, and
it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high
refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise,
transportation, stations, terminals, airports, construction,
education system and other public places.
Features:
1. New mask design makes LED light almost zero reflection, which
ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying
technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good
flatness;
4. High uniformity display color;
5. For improving the service life, PCB is made by wave soldering
process with the green oxygen isolation layer, which prevents the
line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is
increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof
capability;
9. -25℃ – +65℃ working environment for outdoor display, adapted to
the harsh environment;
Specification:
Pixel Pitch | 10mm |
Pixel Density | 10000dots/sqm |
Color Configuration | 1R1G1B |
LED Package | DIP346 |
Module Size | 160mm x 160mm |
Module Resolution | 16dots x 16dots |
Drive Mode | 1/4 Scan, Constant Current |
Brightness | 7500cd/sqm |
Viewing Distance | 10m-100m |
| Interface Port | HUB-75 |
| Module Weight | 0.5KG/pcs |
Viewing Angle | H: 120°; V:120° |
Refresh Rate | 2000HZ |
| Standard Cabinet Size | 960mm x 960mm |
| Cabinet Weight | 45KG/pcs |
Frame Rate | 120frame/sec |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10％, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -40℃~+85℃ |
Working Temperature | -20℃~+65℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof | IP65 |
Operating Humidity | 10%~95% |
Control Method | Synchronous, 3G, WIFI, USB |
Control PC | With DVI Graphic card |
Operating System | Win 98, Win2000, XP, Win7, Win8 etc |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS |
Applications:
Business Organizations | Supermarket, shopping malls, star-rated hotels, travel agencies |
Financial Organizations | Banks, insurance companies, hospital, schools |
Public Places | Subway, airports, stations, parks, exhibition halls, stadiums,
museums, commercial buildings |
Entertainments | Movie theaters, stages |
Our Service and Mission
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance
guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.

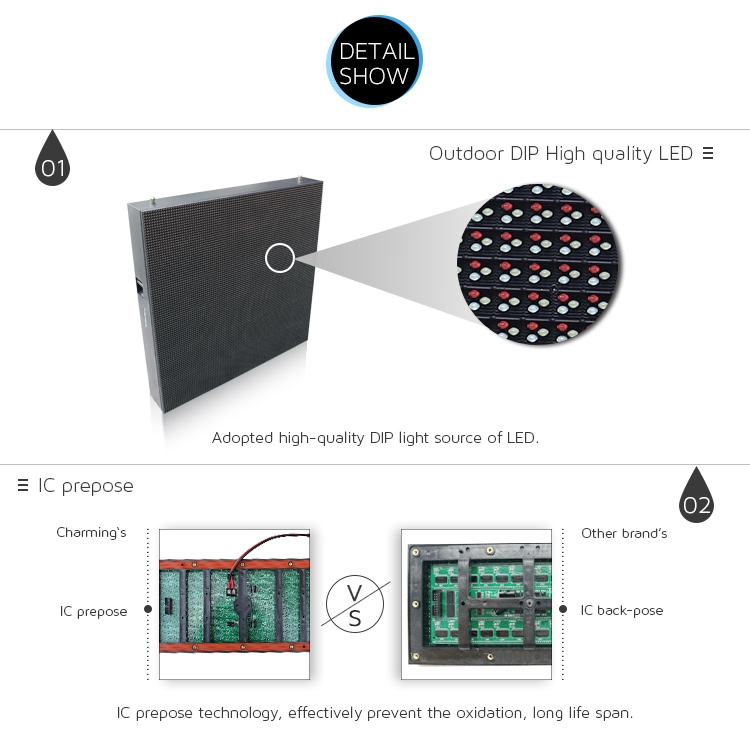

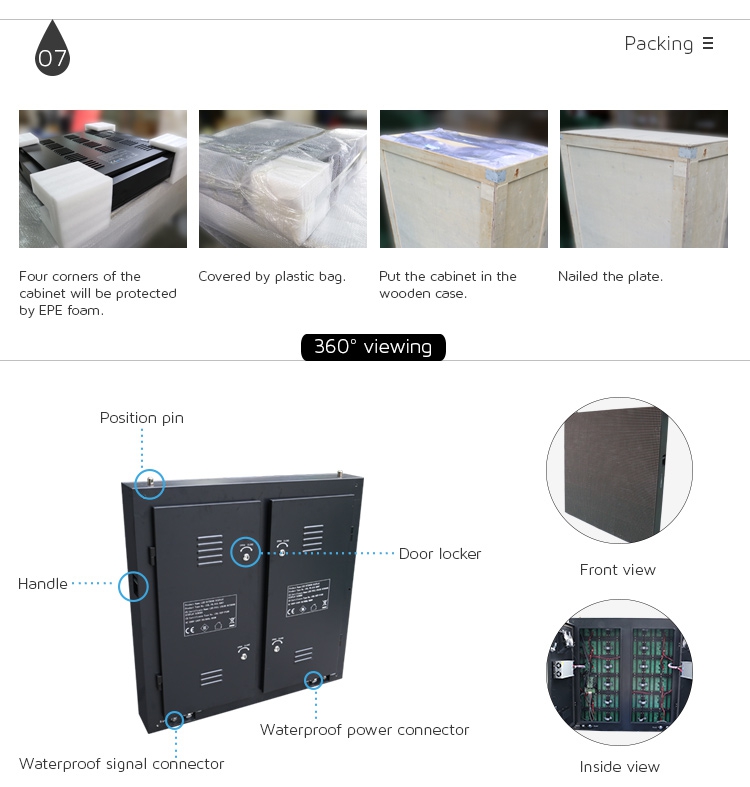

Product Images
