    SMD3528 Indoor Curved LED Screens 6mm HD Full Color Led Display Screen

    Ask Lasest Price
    Brand Name : SRYLED
    Model Number : SRYLED - IFS - P6
    Certification : CE, LVD, RoHS
    Price : US$ 700 - 750 / Square Meter
    Payment Terms : T/T, PayPal, Western Union
    Supply Ability : 1,000 Square Meter per Month
    Delivery Time : 10 - 12 Work Days
    • Product Details
    • Company Profile

    SMD3528 Indoor Curved LED Screens 6mm HD Full Color Led Display Screen

    SMD3528 Indoor Curved LED Screens 6mm HD Full Color Led Display Screen

    Decription:


    Indoor Curved 6mm Full Color LED Display, HD LED Display Screen. It overcomes the corner problems. And enlarges the viewing anles.


    Features:
    1. Super light and super slim design
    Weight: 25kg/cabinet
    Thickness: 110mm
    2. Seamless splicing design
    Splice: <0.3mm

    3. Energy saving design

    Max. power consumption: 450W/sqm

    Ave. power consumption: 150W/sqm

    4. Great heat disspation design

    Specification:


    Pixel Pitch

    6mm

    Pixel Density

    27,777dots/sqm

    Tube Chip Color

    Full Color

    Color Configuration

    1R1G1B 3in1

    LED Encapsulation

    SMD3528

    Module Size

    192mm x 192mm

    Module Resolution

    32dots x 32dots

    Cabinet Size

    576mm x 576mm

    Cabinet Resolution

    192dots x 192dots

    Drive Duty

    1/16 Constant Current

    Brightness

    >1,500nits

    Viewing Distance

    6m - 60m

    Viewing Angle

    H: 120°, V:120°

    Refresh Rate

    2,000HZ

    Frame Rate

    120frame/sec

    Grey Grade

    256levels of Each Color

    Color Grade

    16.7M

    Power Input

    5V - 40A, AC110V/ 220V/ 50HZ

    Max Power Consumption

    450W/sqm

    Ave. Power Consumption

    150W/sqm

    Storage Temperature

    -40℃ - +80℃

    Working Temperature

    -20℃ - +60℃

    Blind Spot Rate

    <1/10,000

    MTBF

    >10,000 Hours

    Life Span

    >100,000 Hours

    Cabinet Weight

    12kg

    Operating Humidity

    10% - 95%

    Control System

    Synchronous, Asynchronous

    Operating System

    Win 98, Win2000, XP, 07.etc

    Input Source

    All Format (AVI, MPEG,VOB, RM, etc)

    Certificate

    CE, LVD, RoHS


    Application:

    Widely using for theater, stadium, showroom, stage, monitoring room and etc.

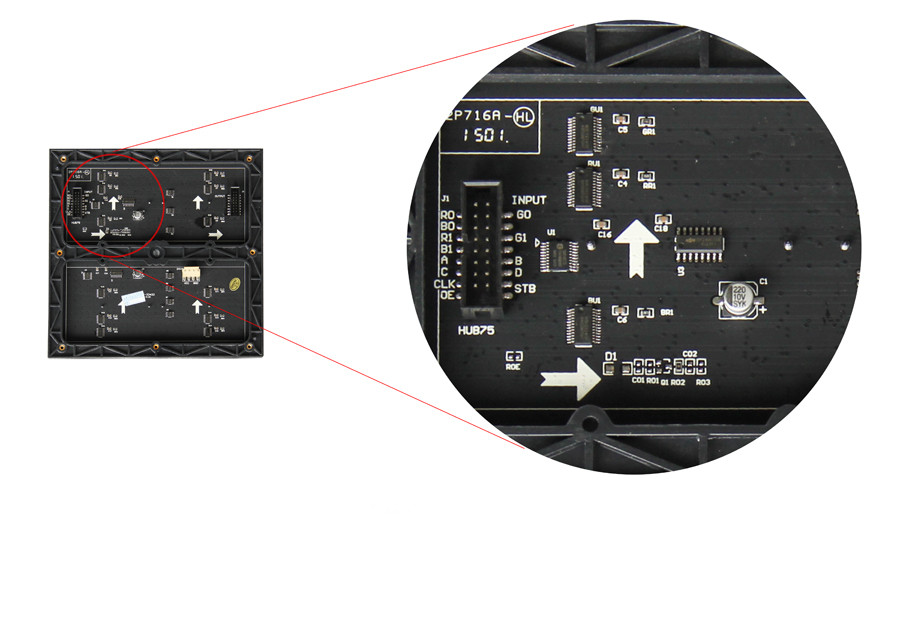

    Pictures:



    Competitive Advantages:

    1. Vivid and brilliant color, sharp and smooth images.

    2. Plug and play, without tools to install / uninstall one cabinet in 6s.

    3. One set cabinet structure is compatiable with various pixel pitches module.


    4. Superb performance / price ratio solution for rental market.


    5. 2 full years warranty.
